Name: 24-Inch Integrated 1080P Endoscope Camera System - All-in-One Endoscopy Camera
Brand: Shenzhen New Concept Med. Tec. Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Model	NCM-CP24
Monitor Size	23.8 inchs
Video Output	16:9, 1920*1080P, 50/60fps
Effictive Pixels	≥ 2 mega pixels
Scanning System	Progressive scanning, ≥900tvl
Image Settings	AWB, Freeze, Zoom, Brightness, Color adjustment ,… etc.
Record Format	MP4
Record Device	USB
LIGHT SYSTEM
Led lamp	American luminus
Illumination	≥2,000,000 Lux
Color temperature	5000-6500K
CRI	＞90
Lamp life	5 years
DISPLAY MONITOR
Screen standard	Medical class
Brightness	450Cd/m²
Angle of view	178°Full view
Display colors	16.2 millions
CAMERA HEAD
Camera head dimension	Length: 114mm±0.5mm Diameter: 33.5mm±0.2mm
Camera head weight	340g
Camera head button	AWB, Freeze, Bright+, Bright-
PROCESSOR UNIT
Processor output	HDMI+DVI+SDI+CVBS+USB
Processor button	AWB, Freeze, Record, Photo, Zoom
Processor dimension	585409103mm
Processor weight	10.8KG

Our company consistently adheres to our "Quality Policy" to ensure that our products comply with medical device regulations and standards. For example, we strictly follow international standards such as IEC 60601, which specifies safety and essential performance requirements for medical electrical equipment. Additionally, we employ advanced testing equipment and methodologies to conduct 100% comprehensive inspections of each product before it leaves the factory. This rigorous process ensures that all products meet design and quality standards, fulfilling our customers' stringent requirements.

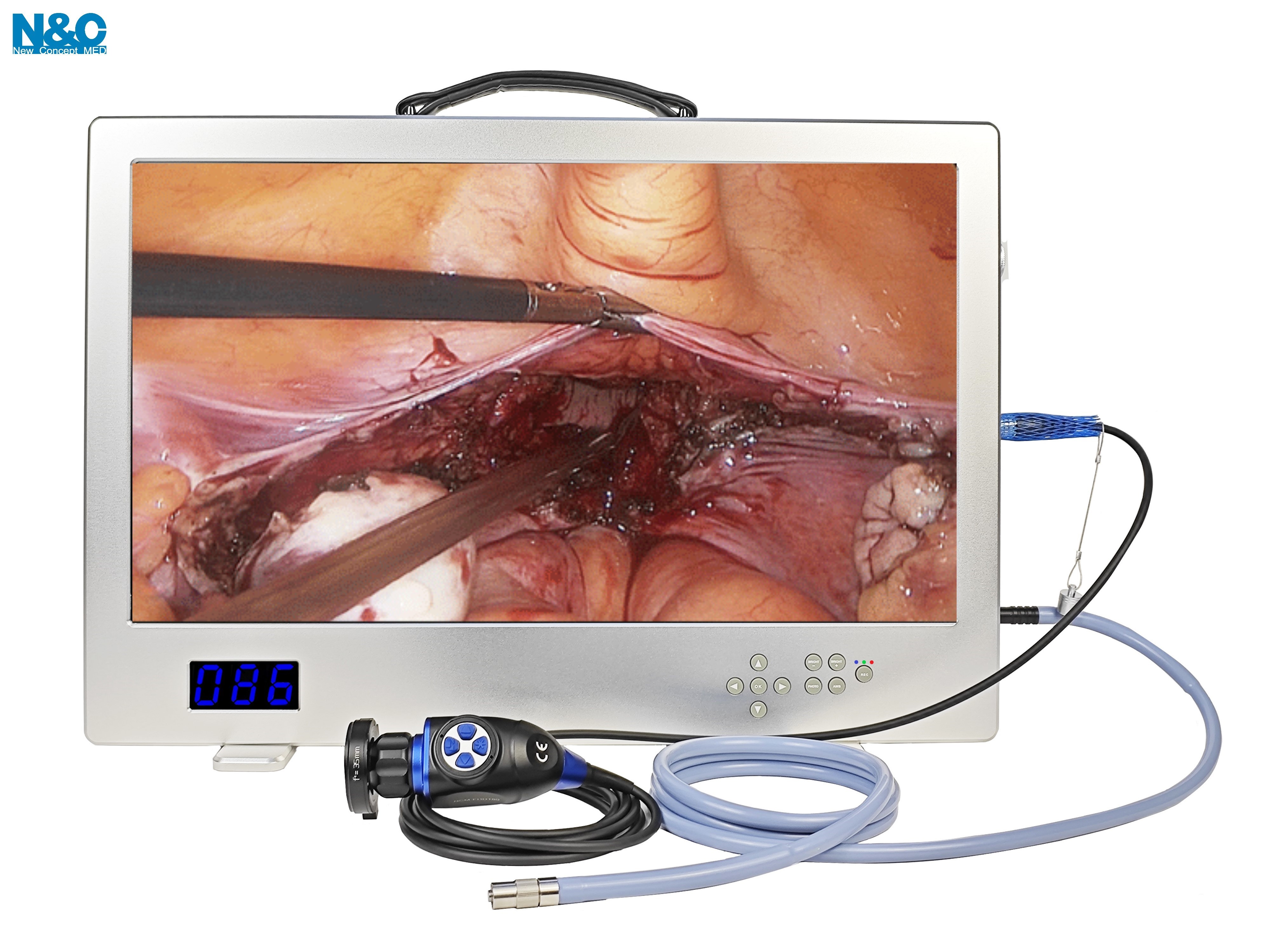

Crystal-Clear Imaging with HD Endoscope Camera
The 24-Inch Integrated 1080P Endoscope Camera System features a high-performance HD imaging unit powered by a SONY CMOS sensor. It captures full 1080P video at 60fps, providing medical professionals with sharp, real-time visuals. Whether used for ENT procedures or general diagnostics, this endoscopy camera system ensures outstanding accuracy and stability in every frame.

All-in-One Medical Camera Design for Clinical Efficiency
This all-in-one endoscopic camera system integrates a 23.8-inch medical-grade monitor, a precision-controlled endoscope inspection camera, and a built-in 40W LED light source. The streamlined design simplifies installation and operation in hospitals and clinics. Its compact form makes it ideal as a mini endoscope camera unit for mobile medical environments or limited-space ORs.

Precision Illumination with Built-In LED Light
Equipped with a high-intensity LED light source, the system delivers over 2,000,000 Lux brightness with adjustable color temperature between 5000–6500K. The endoscope camera with light ensures consistent, clear visibility in deep or shadowed anatomical regions. Its integrated lighting design reduces setup complexity and improves workflow.

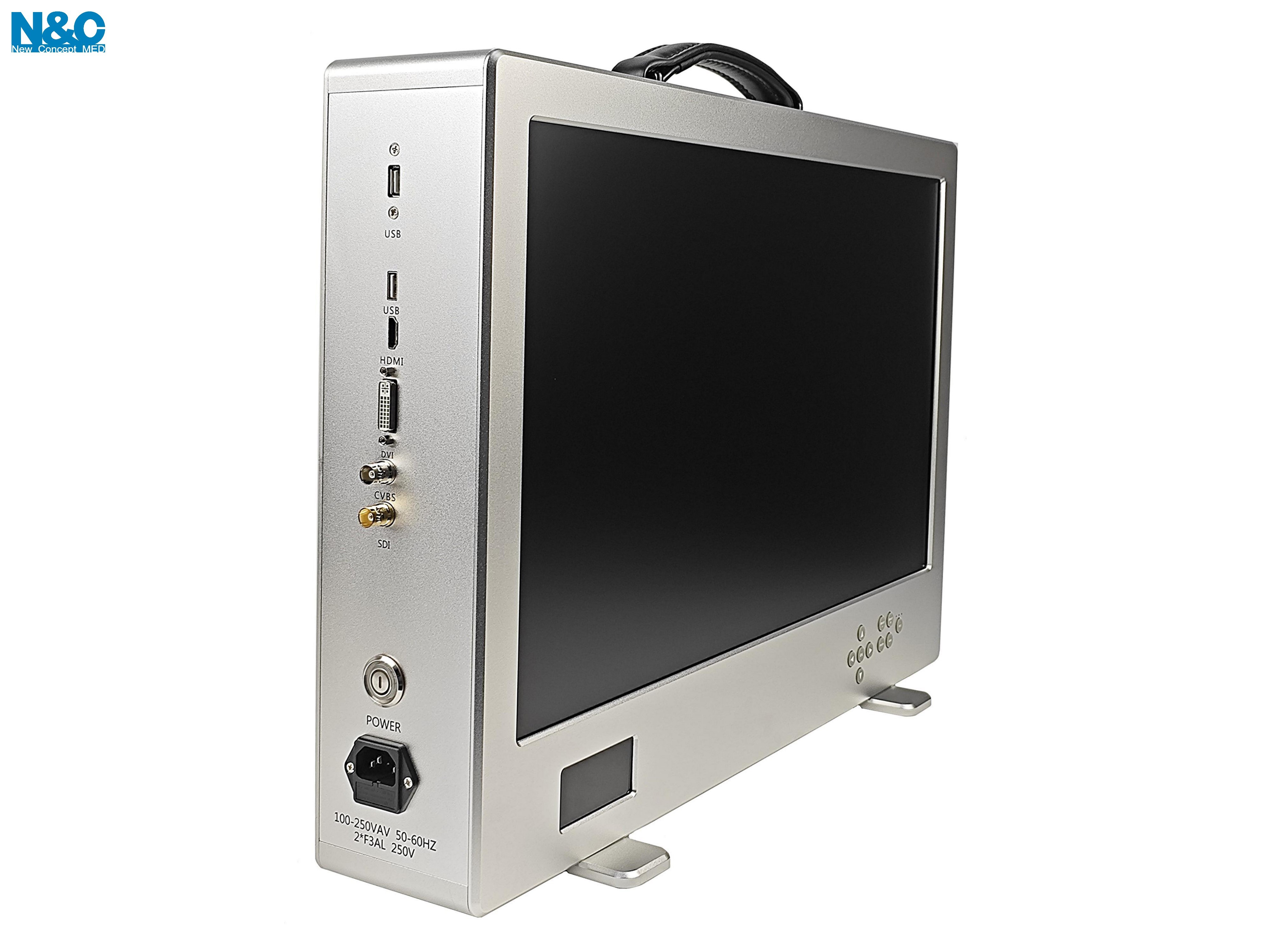

Wide Output Compatibility and Real-Time Recording
Multiple output ports—including HDMI, SDI, CVBS, and USB—support seamless data sharing and real-time image transmission. The built-in endoscope camera module allows direct MP4 recording to USB storage, making it easier to archive, review, and share clinical footage across departments using other endoscopic cameras or digital systems.

Durable and Sterilizable for Demanding Use
Designed for repeated sterilization and long-term clinical operation, the system’s housing is resistant to liquid ingress and compatible with rigid endoscope camera workflows. Its waterproof construction ensures reliability in challenging environments, making it a top choice among waterproof endoscope camera solutions for both surgical and diagnostic use.

Product Advantages

Full HD Output: 1080P @60fps using SONY CMOS sensor for unmatched clarity
All-in-One Structure: Combines display, control, and lighting in one unit
High Brightness: 40W LED with ≥2,000,000 Lux for deep tissue visualization
Multifunctional Output: HDMI, SDI, USB, CVBS for various clinical setups
Durable & Sterilizable: Waterproof, anti-interference design for daily surgical use

About Us

Shenzhen New Concept Med. Tec. Co., Ltd. is a high-tech manufacturer specializing in the research and development of medical endoscopic camera systems.

Core Manufacturing Capabilities and Quality Assurance

Established Expertise: Since our founding on March 14, 2017, we have assembled a team of highly qualified professionals equipped with advanced R&D, production, and testing facilities.
Quality Management: Our operations adhere to stringent standards, including GB/T 42061-2022, ISO 13485:2016, China's medical device production quality management standards, and the EU 2017/745 medical device regulation (MDR).

Production Strength

Innovative Product Development: In 2021, we launched a 4K imaging system to meet the growing demand for high-definition endoscopic solutions.
Advanced Imaging Solutions: In 2023, we introduced an ICG camera, integrating fluorescence imaging technology to enhance surgical precision and safety.

Sustainable Development Measures

Regulatory Compliance: We maintain a quality management system aligned with international standards to ensure product safety and effectiveness.

Customer Collaboration Process

Consultation: Engage with clients to understand specific requirements and provide tailored solutions.
Product Development: Collaborate closely with clients during the R&D phase to ensure products meet their exact specifications.
Quality Assurance: Conduct rigorous testing and quality checks before delivery.
After-Sales Support: Offer comprehensive technical support and after-sales services to ensure customer satisfaction.

Global Service Capability

International Presence: We actively participate in global medical exhibitions, such as the 38th Korea International Medical & Hospital Equipment Show in 2023, to showcase our products and engage with international clients.
Multilingual Support: Our website and customer service are available in multiple languages, including English, Deutsch, Français, Español, Русский, Português, 简体中文, and عربي, to cater to our diverse clientele.

Partner with Shenzhen New Concept Med. Tec. Co., Ltd. to leverage cutting-edge endoscopic solutions that enhance medical procedures worldwide.

FAQ

Who are we?

We are Shenzhen New Concept Med. Tec. Co., Ltd., a high-tech manufacturer specializing in the R&D of medical endoscopic camera systems, established on March 14, 2017.

How can we guarantee quality?

We adhere to international quality standards, including GB/T 42061-2022 and ISO 13485:2016, and comply with the EU 2017/745 medical device regulation (MDR). Our quality management system ensures the safety and effectiveness of our products.

What can you buy from us?

All-in-one endoscopy cameras
FHD/UHD endoscopy cameras
OEM/ODM customization services
LED cold light sources
Medical monitors
Other medical equipment and accessories
Rigid endoscopes and instruments

Why should you buy from us instead of other suppliers?

Expertise: Years of experience in medical endoscopic camera system development.
Quality: Adherence to international standards ensuring product reliability.
Innovation: Continuous product development, such as our 4K imaging system and ICG camera.
Global Reach: Participation in international exhibitions and multilingual support.

What services can we provide?

Technical Support: Comprehensive assistance for our products.
After-Sales Service: Dedicated support to ensure customer satisfaction.
Customization: OEM/ODM services to meet specific client needs.
Logistics: Efficient and reliable delivery services.
Flexible Policies: Customer-friendly return and refund policies.

Enhance your medical imaging capabilities with our advanced 24-Inch Integrated 1080P Endoscope Camera System. Contact SHENZHEN NEW CONCEPT MED. TEC. CO., LTD today to learn more about how this innovative all-in-one endoscopy camera can benefit your practice.
